Aisle cleaning and disinfection machine HC

The HC aisle cleaning and disinfection machine is composed of dual channels (one in and one out), which controls and manages the cleaning and disinfection of personnel entering and exiting between production and non-production areas. Disinfect the hands and the soles of the boots when entering the workshop, and clean the soles of the boots when leaving the workshop

Two-way simultaneous entry and exit type, which is suitable for large-scale production workshops and it’s possible to pass 150 people/10 minutes

HC Parameters

Model	HC
Dimension	L2630 * W1650 * H1550mm
Horizontal brush specification	φ 190 * 1800mm
Vertical brush specification	/
Water pipes	3/4”/ DN50
Total power	3*400V/50Hz，0.55KW
Protection level IP65	IP65

Configuration

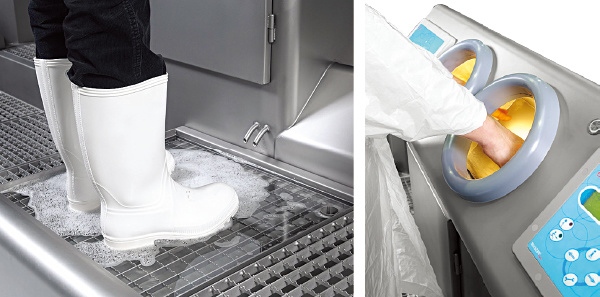

- Boots are cleaned and disinfected by walking through a hair brush or disinfection pool

- Vertical brush for boot upper cleaning and disinfection (70/300mm optional)

- Disinfecting unit for hands

- Attendance and access control system

Boots are cleaned and disinfected
